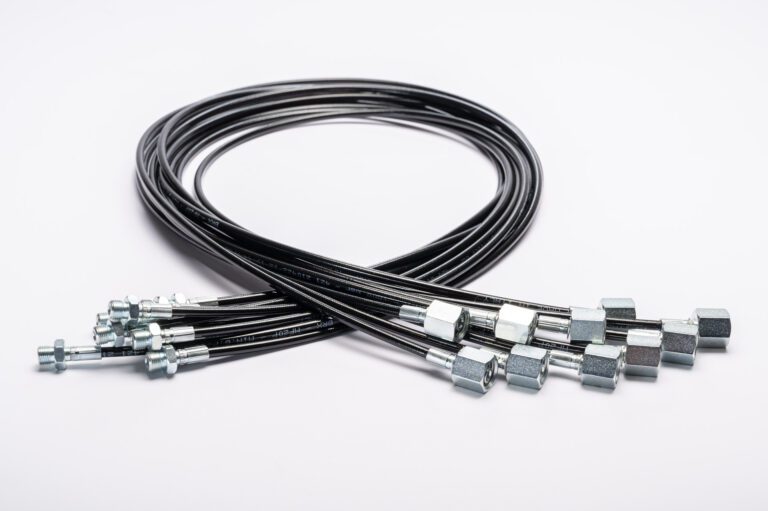

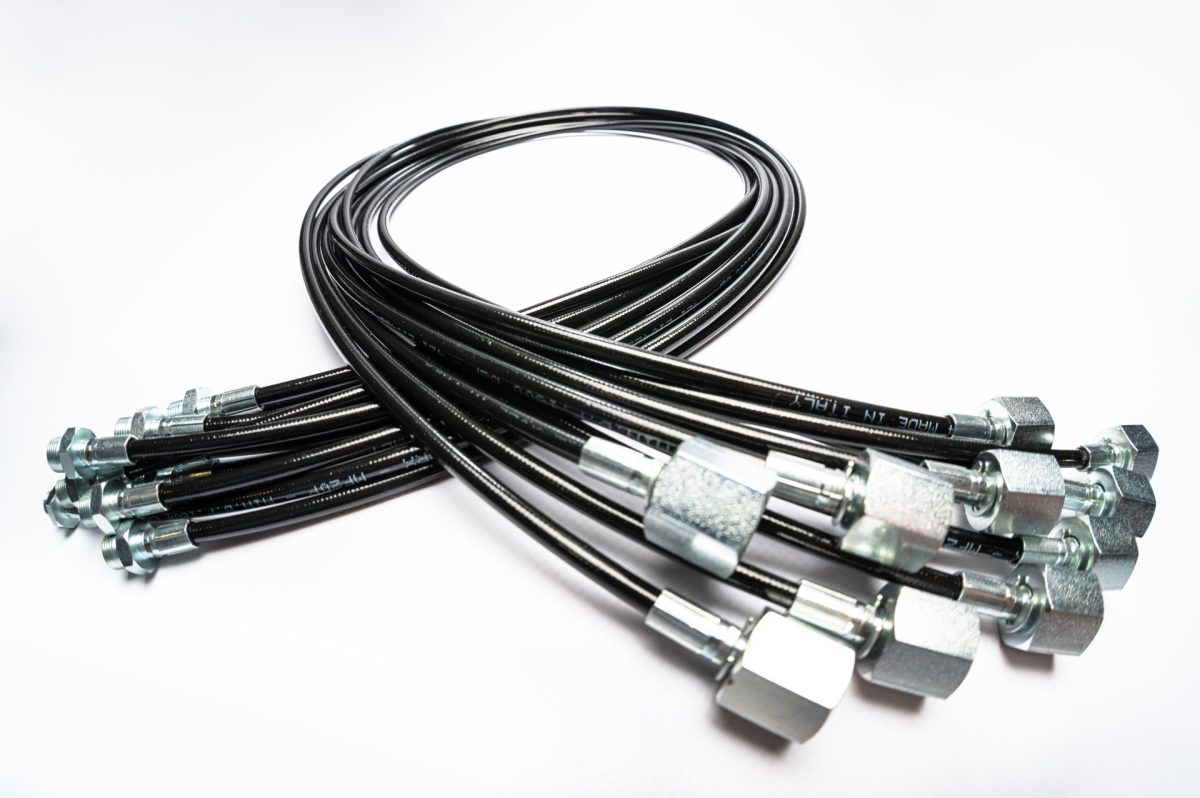

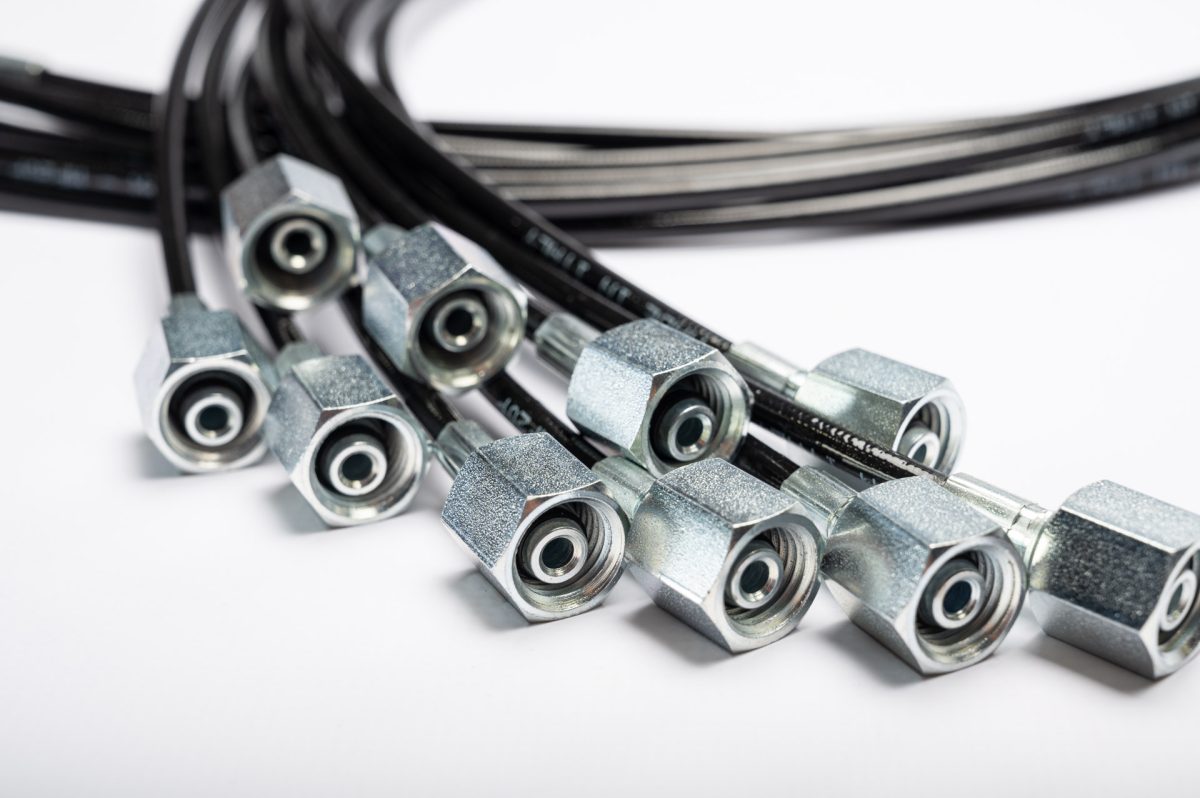

Small size, flexibility and resistance to high pressure are the main features of the MF20P mini hoses which are widely used for connecting hydraulic system control instruments, microcylinders or, simply, pressure gauges with the particularity of simple assembly and preservation of the instrument from vibrations and water hammers.
This hose is built for use in harsh conditions and consists of an internal core in polyester, a reinforcing braid in high tenacity aramid fiber (with the typical yellow colour) and an external coating in polyurethane which is particularly resistant to abrasion and to atmospheric agents.
Note:
operating temperature: -40°C/+93°C (for water-based fluids and air max 70°C) – from SAE J 517
(*) recommended safety factors: 1:3 for menometer connection
1:4 for general uses in hydraulic systems
1:5 for air or compatible gases
| Codice articolo | Diametro/Diameter (d) | Diametro/Diameter (D.I.) | Max esercizio/Max work | MIn. scoppio/Min burst | Raggio min. curvatura/Min bend radius | Peso/weight |
|---|---|---|---|---|---|---|
 | mm | mm | bar | bar | mm | g/Mt |
| MF20P | 2 | 5 | 600 | 1800 | 25 | 17 |
